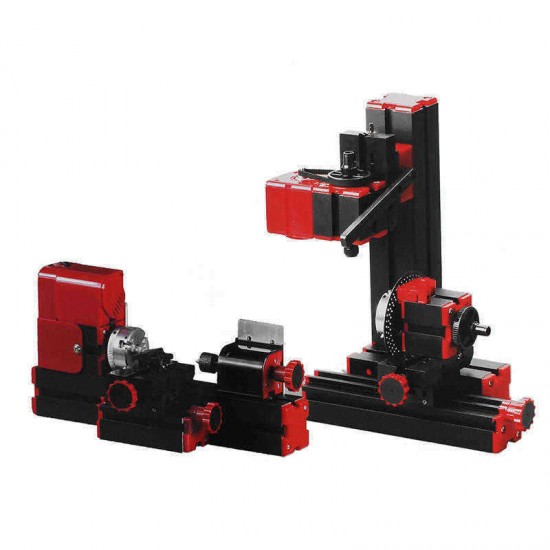

Raitool™ 8 In 1 Mini Multipurpose Machine DIY Woodwork Model Making Tool Lathe Milling MachineKit
Specification:
Brand:Raitool
|

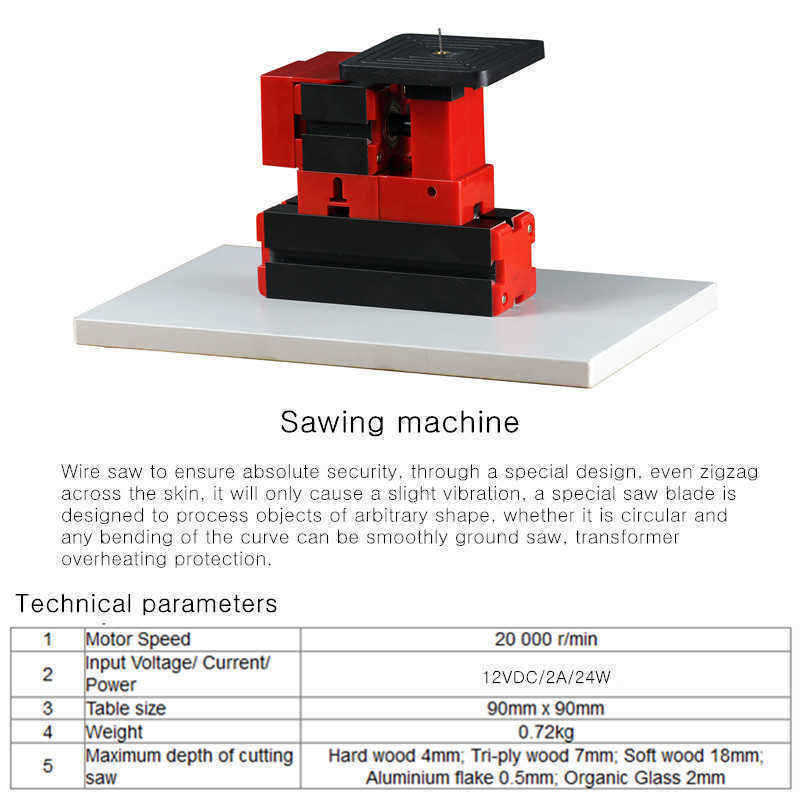

Sawing machine Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W, 3) Table size: 90 x 90mm 4) Material: Aluminum,Carbon steel, ABS 5)The max.thickness of cut: hardwood: 4mm, polywood: 7mm, softwood: 18mm, sheet metal: 0.5mm, plexi-glass: 2mm |

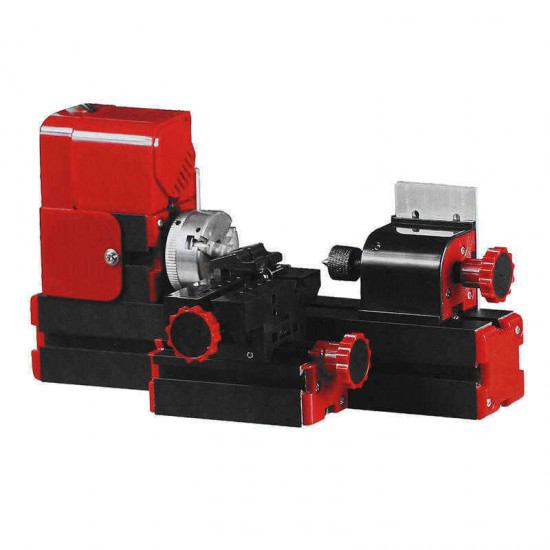

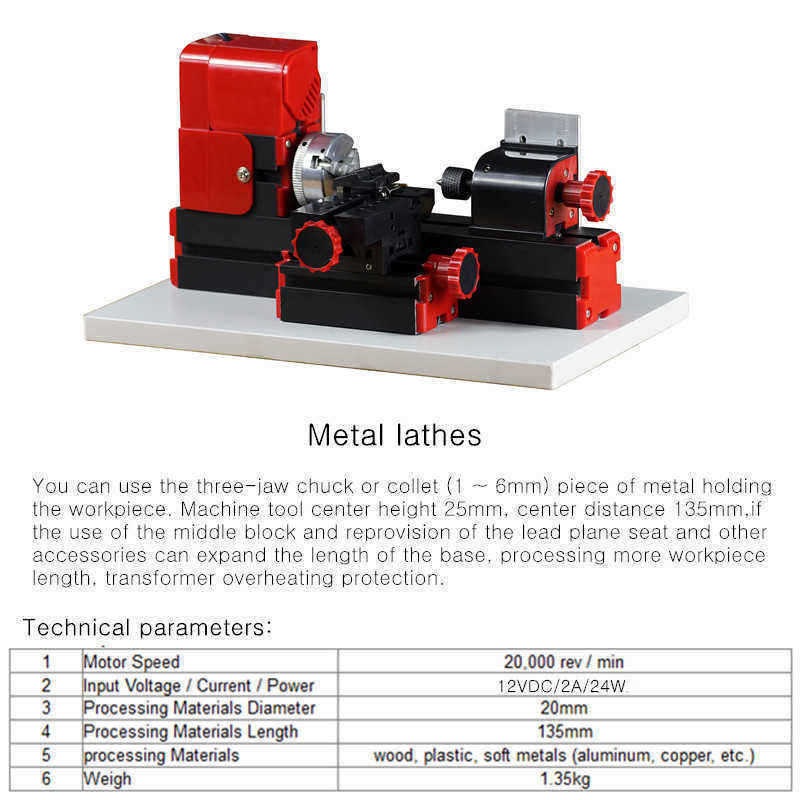

Metal lathes Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W 3) Tree 3-jaw chuck (self-centering) 4) The maximum diameter of the processed materials: 20mm 5) Length of processing materials: 135mm 6) Material: Carbon steel, Aluminum, ABS 7) it can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals |
|

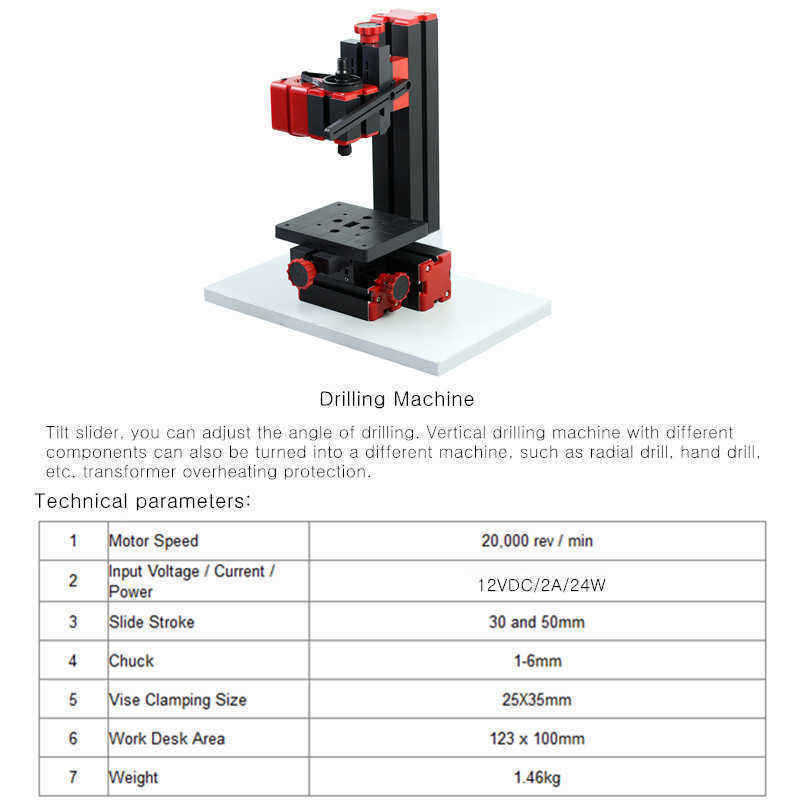

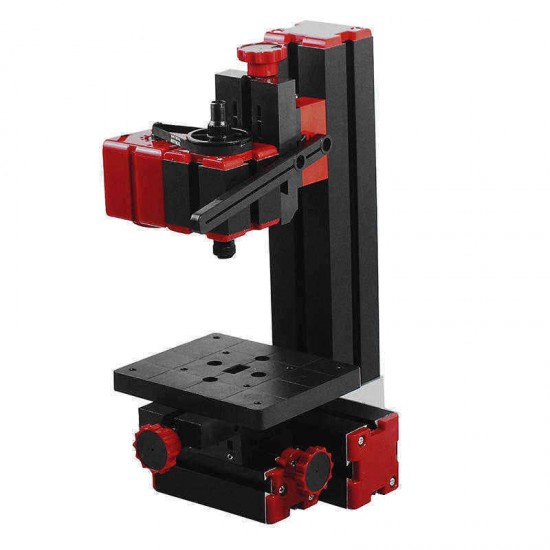

Drilling machine Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W, 3) Slide travel: 30 --50 mm 4) Stroke: 25mm 5) Clamping dimensions: 1 to 6 mm 6) Working area: 123 x 100mm 7) Material: Carbon steel, Aluminum, ABS 8) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc. |

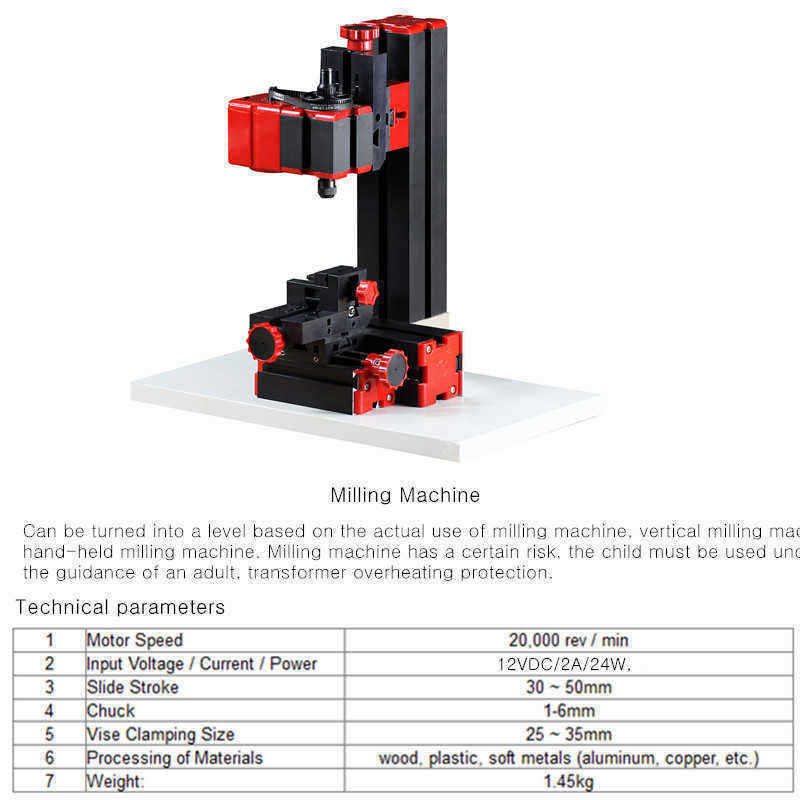

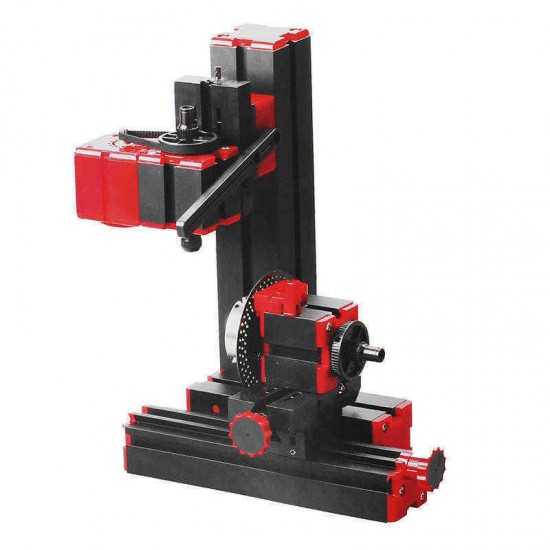

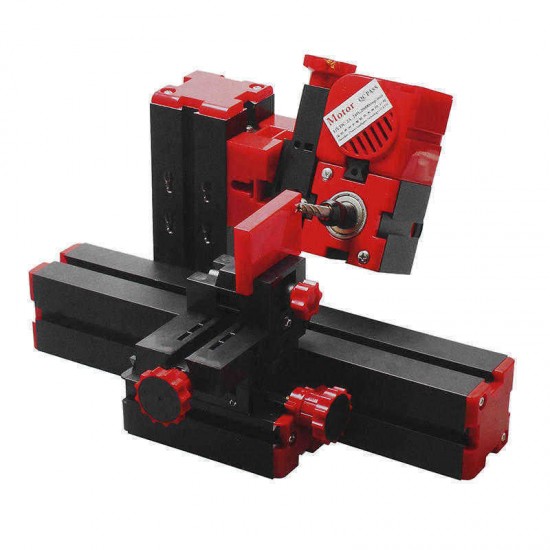

Milling machine Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W, 3) Slide travel: 30 -- 50mm 4) Clamping dimensions: 1– 6mm 5) Material: Carbon steel, Aluminum, ABS 6)Vise clamping size : 30mm |
|

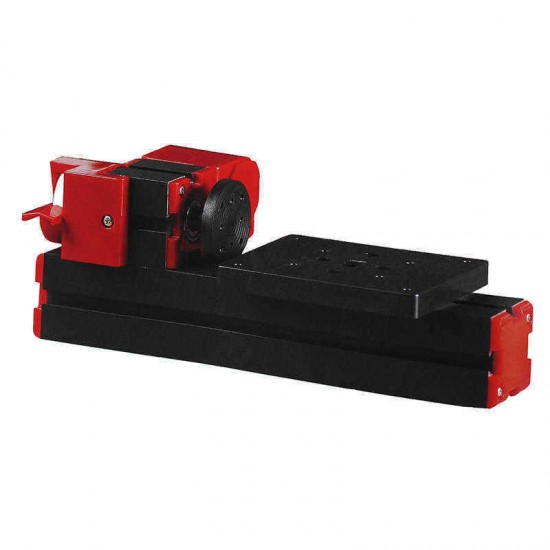

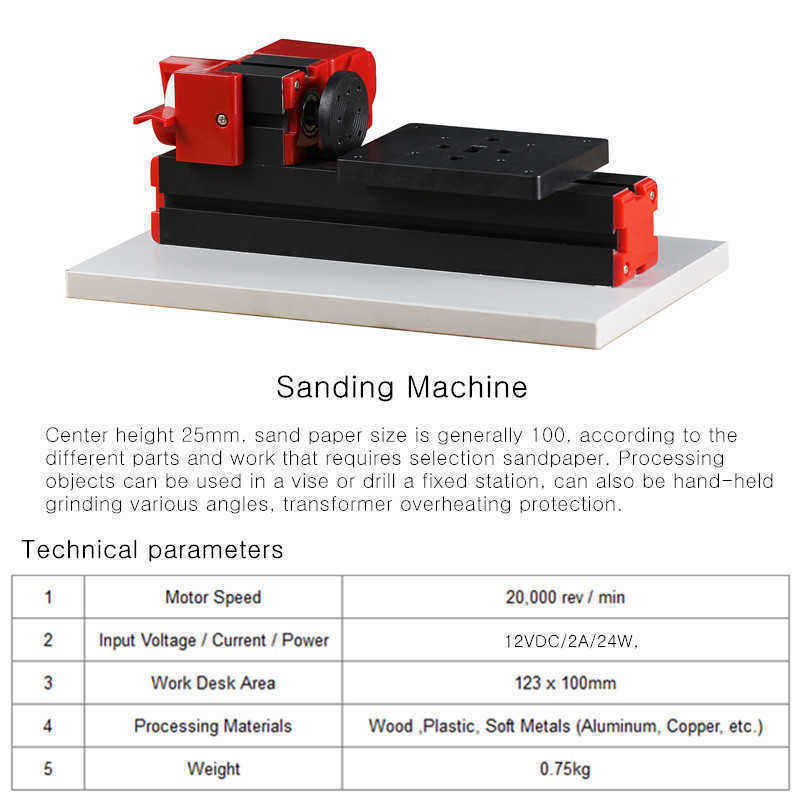

Sanding machine Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W, 3) Material: ABS ,Carbon steel, Aluminum 4) Working area: 123 x 100mm 5)The item can process everything that is used in model making |

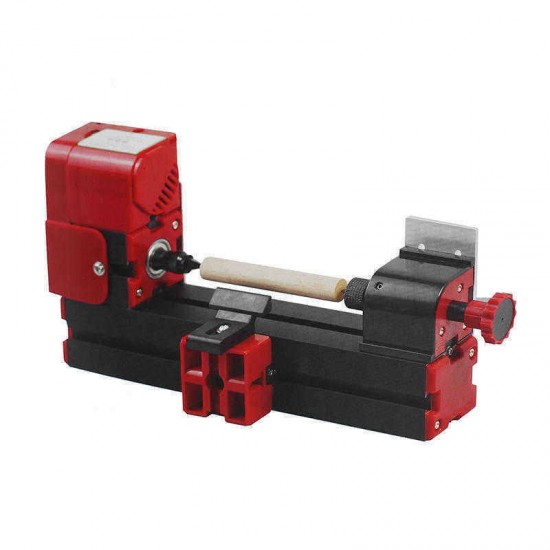

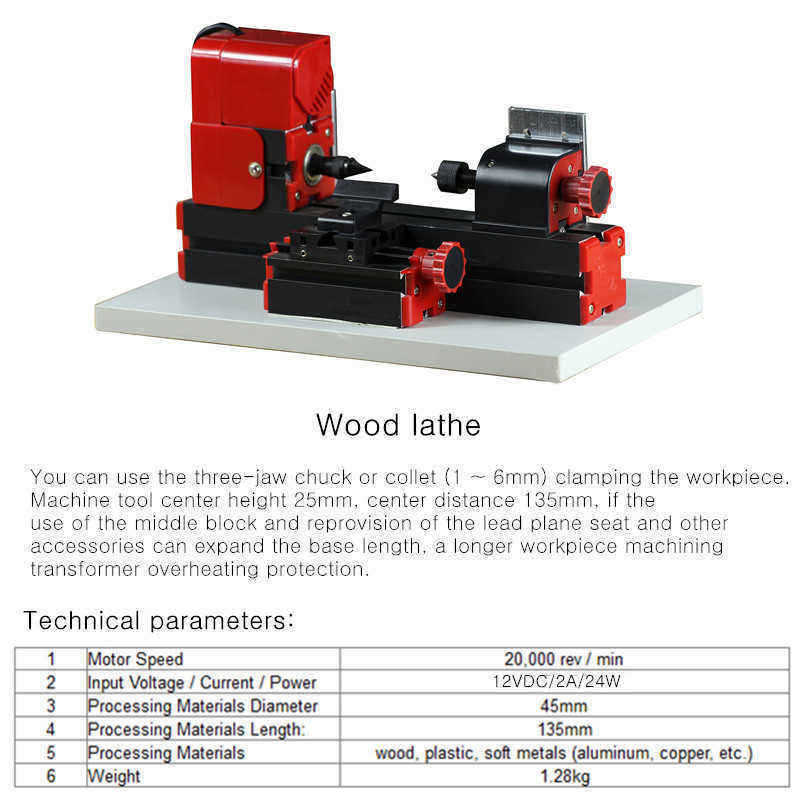

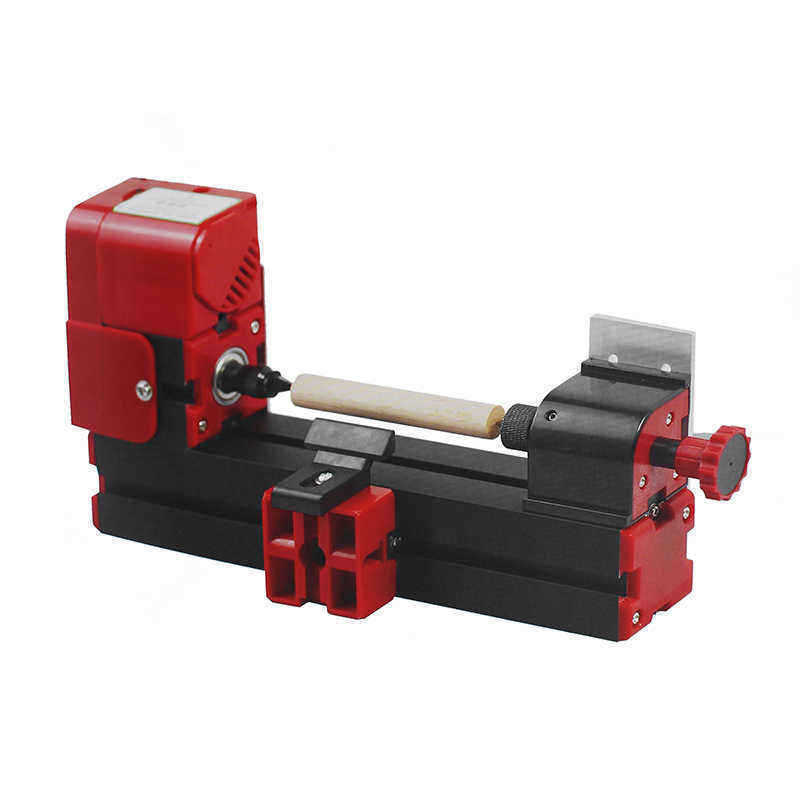

Wood Lathe Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W, 3) The maximum diameter of the processed materials: 45mm 4) Length of processing materials: 135mm 5) Material: Aluminum, Carbon steel, ABS 6) All types of wood (also hard wood) can be processed |
|

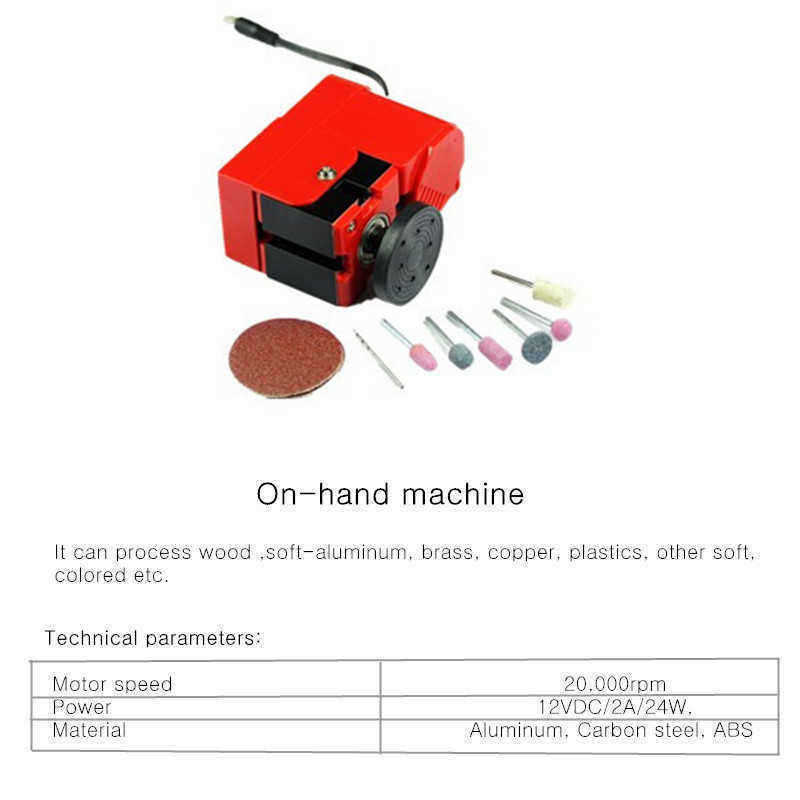

On-hand machine Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W, 3) Material: Aluminum, Carbon steel, ABS 4) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc |

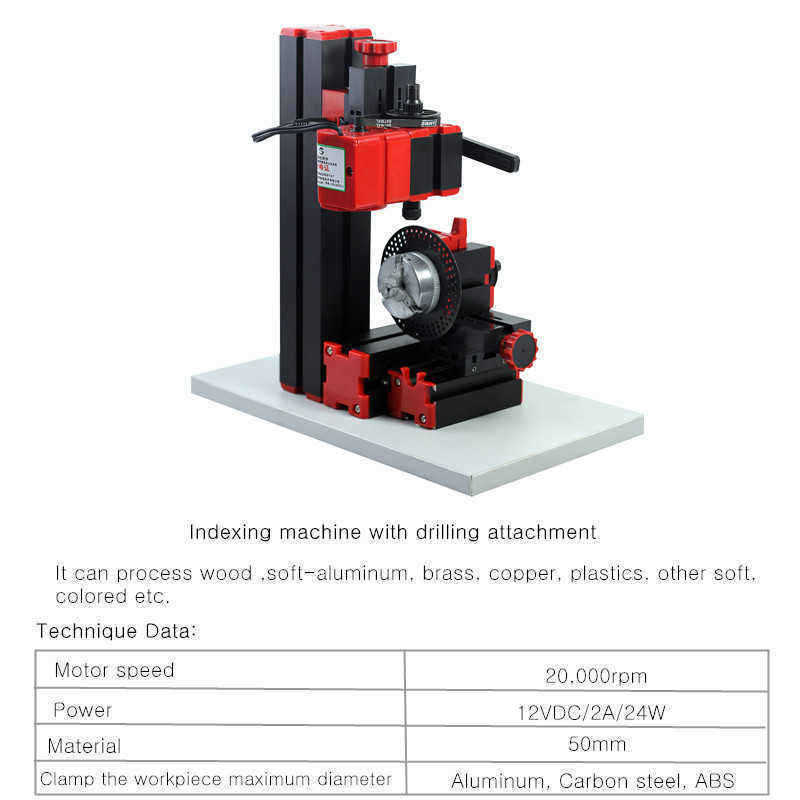

Indexing machine with drilling attachment Technique Data: 1) Motor speed: 20,000rpm 2) Power: 12VDC/2A/24W, 3)three-jaw chuck to clamp the workpiece maximum diameter of 50mm 4) Material: Aluminum, Carbon steel, ABS 5) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc. |
Package included:

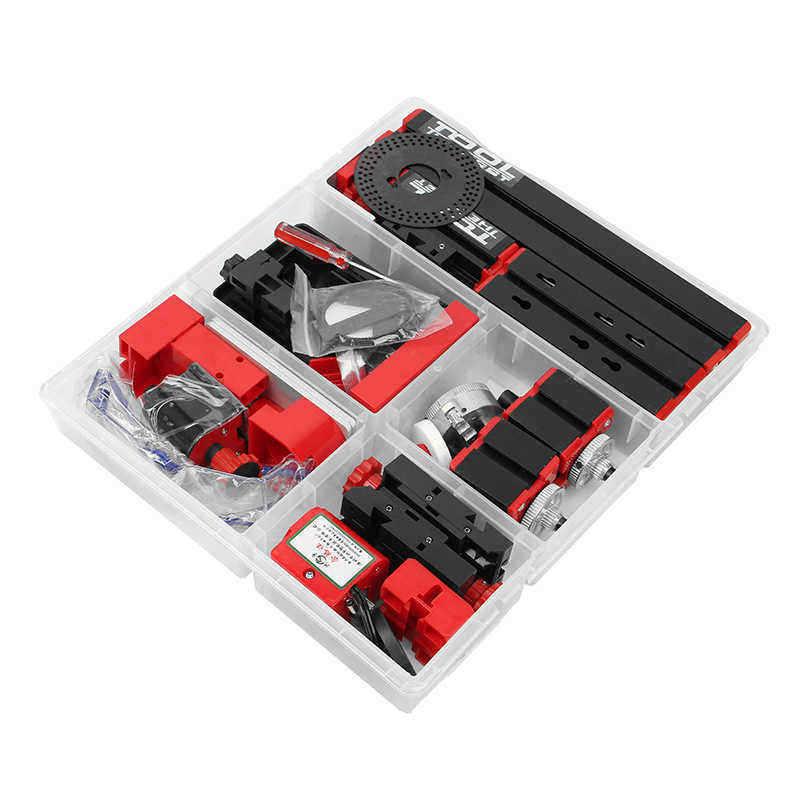

1x 8 in 1 Mini Multipurpose Machine Set
1x User manual
1x Disk

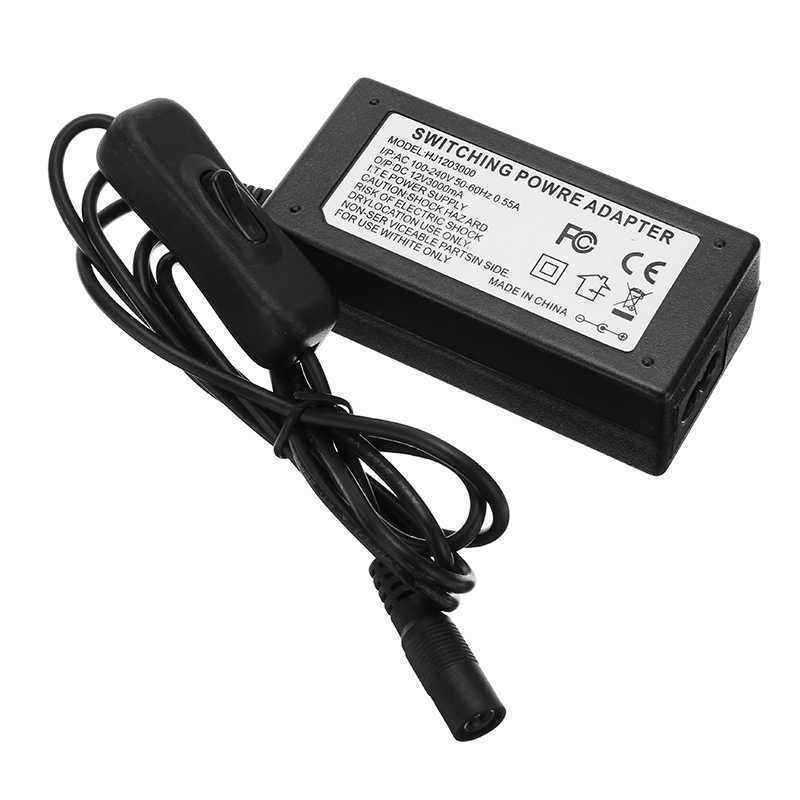

1x Power line
1x US plug
,
,
,
,
,
,
,
